Needle Valve

Needle Valve

DOWNLOAD CATALOGUE

Hexagonal Bar Stock Needle Valve

Features

Adjustable to extend service lives
Optional with graphite seals for high temperature
Choice of bleeding function
Optional with 10000 psi on metal to metal
Available with straight through pattern in POM seat for easy cleaning

Specifications

Maximum Working Pressure
6000 psi (414bar) at 100°F (38°C)
Working Temperature
-65°F (-54°C) to 464°F (240°C)
Connections
NPT, BSPT, BSPP
1/2”, 3/4”, 1”

Square Bar Stock Needle Valve

Features

Compact design to provide economical solution
Optional with panel mountable
Choice of bleeding function

Specifications

Maximum Working Pressure
6000 psi (414bar) at 100°F (38°C)
Working Temperature
-22°F (-30°C) to 392°F (200°C)
Connections
NPT, BSPT, BSPP
1/8”, 1/4”, 3/8”, 1/2”

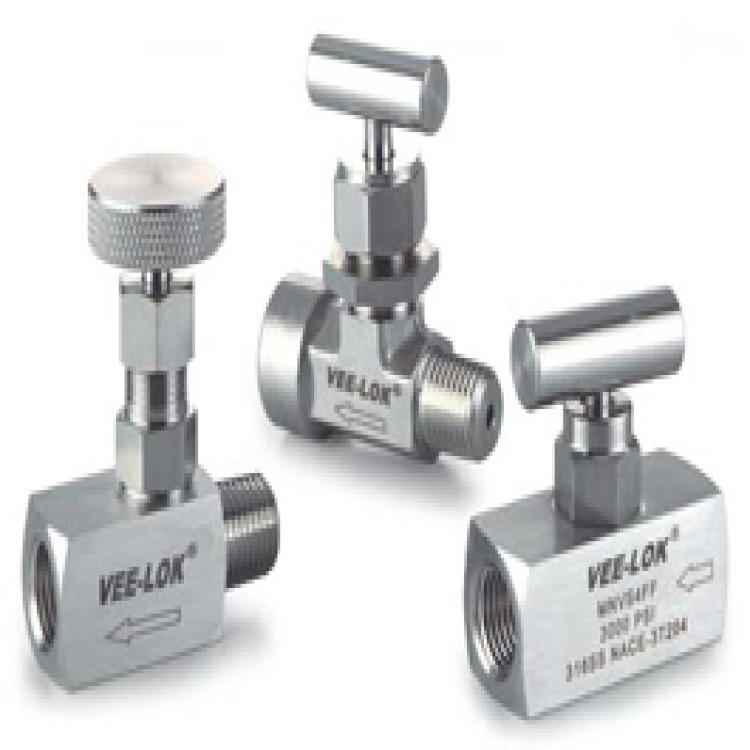

Mini Valve

Features

Compact installation
T bar handle on hard seat
Knurled round handle on POM seat

Specifications

Maximum Working Pressure
3000 psi (210bar) at 100°F (38°C)
Working Temperature
-22°F (-30°C) to 392°F (200°C)
Connections
NPT, BSPT, BSPP
1/8”, 1/4”
