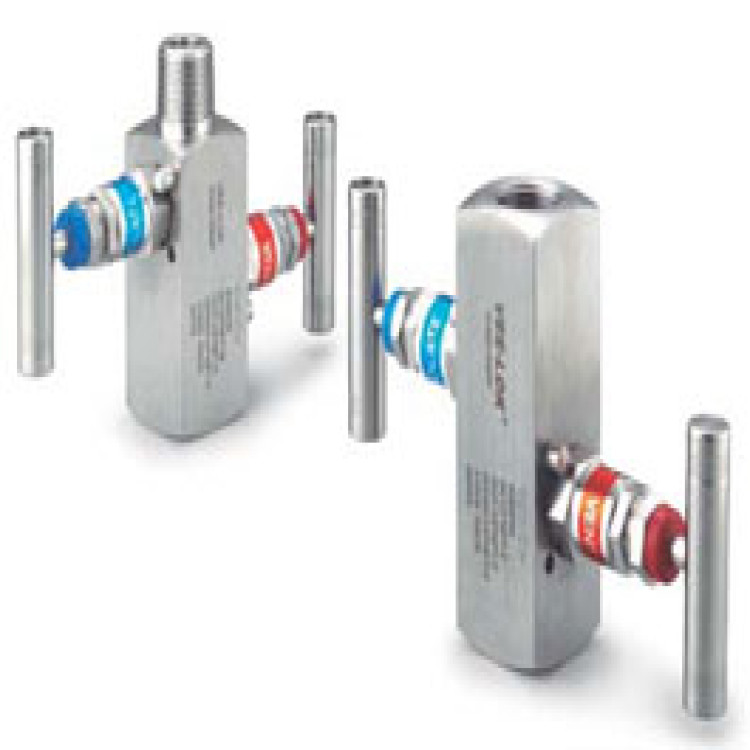

Block & Bleed Valve

Features

• A single unit providing isolating and venting of pressure instruments
• Utilized to reduce the number of components and decrease possible leak points

Specifications

• Maximum Working Pressure
  6000 psi (414bar) at 100°F (38°C)
• Working Temperature
  -65°F (-54°C) to 464°F (240°C)
• Connections
  NPT, BSPT, BSPP
  1/4”,3/8”, 1/2”

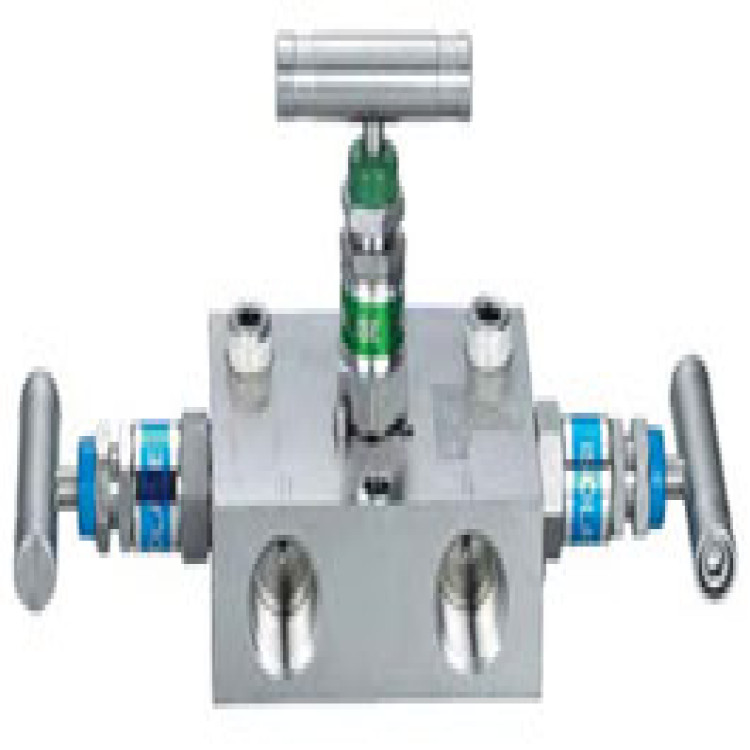

  Threaded 2.3.5 Valve Manifold

  Features

  • Colored caps for valve function identification
  • Application to differential pressure, level and transmitters
  • Optional port sizes and thread forms available

  Specifications

  • Maximum Working Pressure
    6000 psi (414bar) at 100°F (38°C)
  • Working Temperature
    -65°F (-54°C) to 464°F (240°C)

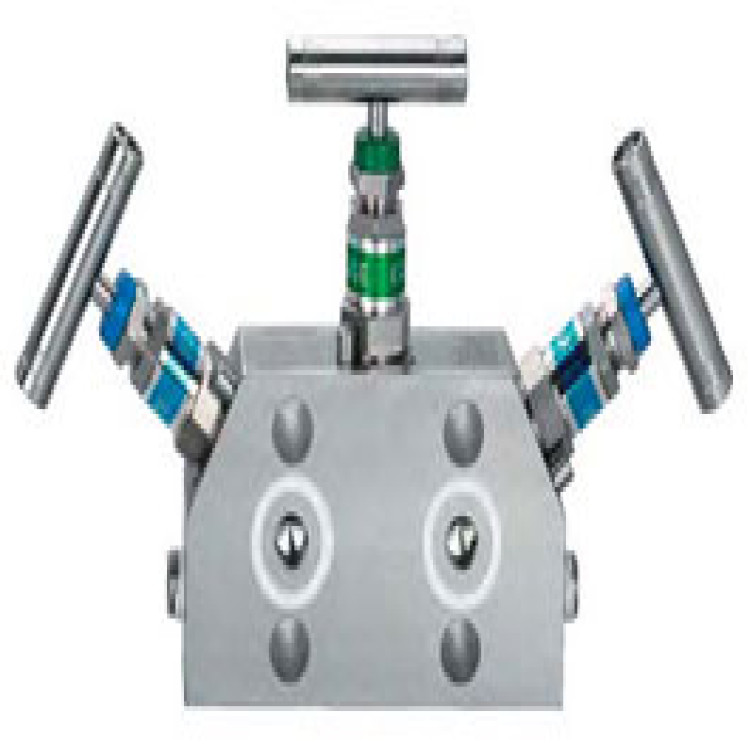

  • Flanged Valve Manifold Features Colored caps for valve function identification Application to differential pressure, level and transmitters Optional port sizes and thread forms available Manifolds for 3051 style transmitters available Specifications Maximum Working Pressure 6000 psi (414bar) at 100°F (38°C) Working Temperature -65°F (-54°C) to 464°F (240°C) Distribution Valve Features Optimize setting of the main pipe and branch. Quantity of outlet connections are available from 4 to 12 Specifications Maximum Working Pressure 6000 psi (414bar) at 100°F (38°C) Working Temperature -65°F (-54°C) to 464°F (240°C)
